IP 68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland

Sertifikasi
CINA Shenzhen City Breaker Co., Ltd. Sertifikasi
CINA Shenzhen City Breaker Co., Ltd. Sertifikasi
Excellent quality and fast delivery.

—— Victor

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I 'm Online Chat Now

IP 68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland

IP 68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland
IP 68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland

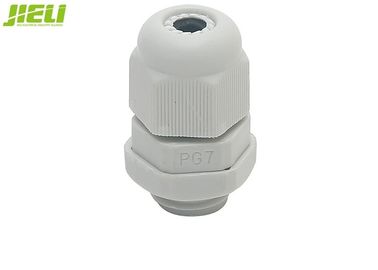

Gambar besar :  IP 68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland

Detail produk:
Place of Origin: China
Nama merek: JIELI or OEM
Sertifikasi: UL, ROHS, REACH, PAHS
Model Number: JL-PG7
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 2000 pieces
Harga: Negotiate
Packaging Details: 100pcs/bag,plastic bag packed in carton or according to the customers' request
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per day
Detil Deskripsi produk
Protection Level:: IP68 Material: Nylon
Thread Length L1(mm):: 10 Cable Range:: 6-12mm
Working Temperature:: -40°C + 100°C Sample:: Free samples for any test

IP68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland





Quick Detail:







Brand Name:JEILI
Model Number:PG7

Material:Nylon
Thread Length L1(mm):10

Cable Range:6-12mm
Working Temperature:-40°C + 100°C
Test Report:UL, ROHS, REACH, PAHS

Package:Poly bag





Description:









PG joint:the design of clamping claw and special seal, forced to cooperate with tight head

assembly time-savers, cable clamping range is big, Tensile resistance is strong, can waterproof,

prevent dust, prevent oil, acid and alkali, salt and other general grease.plastic cable kits,

cable waterproof connector is mainly used in the distribution box, power distribution cabinet above.

Connector cable lock, can be at the other end can access the above equipment enclosure,

can also according to the thread Access to the electric equipment import and export for the

internal thread. General mechanical control box, switchboard, machine Such as wire and

cable fixed to use, can effectively clamping cable waterproof and to achieve.





Applications:









PG joint is used in power electronic control equipment, military, petroleum, chemical, explosion,

textile,medical,aeronautical communications, machine tool machinery and equipment manufacturing,

measurement and control technology, instrumentation manufacturing and many other industries

equipped with plastic coated hoses, cables, wires connector;above. Connector cable lock,

can be at the other end can access the above equipment enclosure, can also according to

the thread Access to the electric equipment import and export for the internal thread.

General mechanical control box, switchboard, machine Such as wire and cable fixed to use,

can effectively clamping cable waterproof and to achieve.





Specifications:









PG

Model

Cable Range

H

GL

Spanner Size

 No.

mm

mm

mm

mm



PG7

3-6.5

19

5

14

P 0707BR

PG7

2-5

19

5

14

P 0705BR

PG9

4-8

21

6

17

P 0908BR

PG9

2-6

21

6

17

P 0906BR

PG11

5-10

22

6

20

P 1110BR

PG11

3-7

22

6

20

P 1107BR

PG13.5

6-12

24

6,5

22

P 13512BR

PG13.5

5-9

24

6,5

22

P 13509BR

PG16

10-14

23

6,5

24

P 1614BR

PG16

7-12

23

6,5

24

P 1612BR

PG21

13-18

24

7

30

P 2118BR

PG21

9-16

24

7

30

P 2116BR

PG29

18-25

29

8

40

P 2925BR

PG29

13-20

29

8

40

P 2920BR

PG36

22-32

35

8

50

P 3632BR

PG36

20-26

35

8

50

P 3626BR

PG42

32-38

37

9

57

P 4238BR

PG42

25-31

37

9

57

P 4231BR

PG48

37-44

38

10

64

P 4844BR

PG48

29-35

38

10

64

P 4835BR
