Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port

Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port
Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port

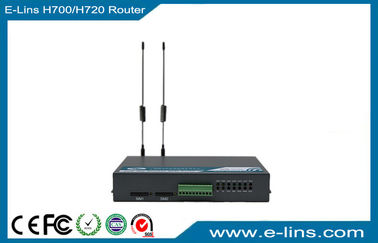

Gambar besar :  Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port

Detail produk:
Place of Origin: China
Nama merek: E-Lins
Sertifikasi: CE/ROHS/FCC/SGS
Model Number: H700p-3
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1pc
Harga: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with boxes
Delivery Time: Sample in 3 days (for usual version), Bulk order in 2-30 working days depends on material stock
Payment Terms: T/T or western Union
Supply Ability: 20,000pcs per month
Detil Deskripsi produk
Features: VPN, GPS, DDNS, NAT, NAPT, DMZ, etc. Modem: Dual Sim Single Module
Product Name: Unlock Dual Sim 3G UMTS Router Antenna: External replaceable
Port: RJ45, Serial RS232 or RS485 Supported Networks: HSDPA, HSUPA, HSPA+, EDGE, GPRS, GSM
Case Material: Alloy Metal WLAN: WiFi 802.11b/g/n
Type: Industrial class SIM card slot: 2
Wireless Type: Wireless Cellular Mobile RJ45: 1 WAN, 4 LAN
Cahaya Tinggi:

Industrial Wifi Router

,

mobile cellular router



Unlock Dual Sim 3G UMTS Router Backup Failover Always Online Never Down





Description of H700 Industrial 3G UMTS Router



1. H700 series 3G Router covers multi-features such as dual sim switching, internal battery for out power supplier failover.



Providing various ports and interface (Ethernet, WiFi, Serial RS232 or RS485, I/O), H700 Dual SIM 3G Router is a kind of cellular terminal device that provides data transfer function by public or private cellular network.



H700 Dual Sim 3G UMTS Router is widely used on wireless M2M fields, such as CCTV surveillance, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, ATM, water supply, environment protection, post, weather, etc.



2. Hot Spot of H700p 3G UMTS Router

1) Built-in two SIM/UIM card slot;

2) One line WAN and two Cellular WAN for backup failover use. Built-in 3G HSPA+ industrial cellular modules, insert SIM/UIM card to work directly;
3) HSPA+/3G/2G, fixed line broadband connections and WiFi Client failover;
4) Easy to management with GUI Web, Telnet SSH CLI, SNMP, RMS (Remote Management System), SMS
5) 4 LAN RJ45 port, 1 WAN RJ45 port, WiFi, Serial and I/O ports;
6) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)

7) Built-in watch dog, keep alive, etc.

8) Built-in battery for external power failover (option)





H700 Industrial Dual Sim 3G UMTS Router Specifications



Wireless Cellular

Mobile Networks

3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+);

2G GSM EDGE/GPRS

Cellular Frequency

UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;



Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;

Bandwidth

HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;

HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;



EDGE: Downlink 384 kbps, Uplink 118 kbps;

GPRS: Downlink 108 kbps, Uplink 42.8 kbps;



Notes: the bandwidth is peak value. Real value depends on carrier network support.

Network and Band Lock Feature (Option)

Default is unlocked, can use this feature to lock

Main Features and Performance

USB Host

No, can ODM

SMS/Voice

SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option

GPS (Option)

GPS feature

DTU (Option)

With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).

Details:

Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps;

Serial Parity: none, even, odd;

Serial Databits: 7, 8;

Serial stopbits: 1, 2;

Serial flow control: none, hardware, software;

Mode: Server (up to 4 server centre, can OEM to be more), Client;

Protocol: TCP, UDP ;

Heart Beat : Yes;

VPN

PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server)

OpenWRT (Option)

Optional

VRRP (Option)

Optional

Route

Static Route;

Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip);

SNMP

Support V1, V2. V3

VLAN

Support multi-LAN IP address, support two IP address

Wi-Fi

Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional.

Can be used as AP and client;

Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users

Fail Over Redundancy (network Backup feature)

Auto-dial feature, keep alive link;

LCP, ICMP check;

Built-in watch dog;

Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy;



Cold Backup is default, Hot Backup is option;
Cold Backup=WAN RJ45 and Cellular WAN not online at the same time. One line online and the other line standby, switch freely with triggers;

Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup.

POE

POE for LAN/WAN RJ45 (use with POE adapter)

Firmware update

support firmware update locally or remotely (LAN, WiFi and OTA WAN)

Syslog

local and remote

DDNS

Yes

DHCP Server

Yes

Internal Battery Optional (8000mAH, 4000mAH *2)

Others

DNS proxy;

Optimized EMC design;

Real-time clock (NTP, support update with defined hours);

WAN/LAN/Memory statistics;

Local/remote profiles backup and retrieve;

Management System

Option

Protocol



Protocol support

TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc.

Security



Firewall

support 64/128 bits WEP, 802.1x, WPA, and WPA2

support WDS

support WPA1/2 – PSK

support WPA1/2 – 802.1x

support EAP – TLS, TTLS, LEAP, PEAP

TKIP, AES encryption

support access with user name & password.

support access control base WAN/LAN interface

support access control base source IP address

defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc.

support PAP & CHAP

support IP filtering

support content filtering

support NAT/NAPT/Port forwarding/DMZ

Advanced Firewall Features

Stateful Packet Inspection (SPI)

VPN Pass-through

Media Access Control

CSMA/CA with ACK

Certifications

REDIUS Client

Interface



LAN/WAN

4X 10/100M LAN port (RJ45 interface)

1X 10/100M WAN port (RJ45 interface)

(WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45);

WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual)

Antenna

1-5 antenna (50Ω SMA female interface, detachable):

Wi-Fi*2

Cellular*1 or 2

GPS*1

Cellular support MIMO(Diversity Receiving) option;

WiFi support MIMO (Diversity Receiving) option;

Led

SYS

VPN

WiFi

Cell1

Cell2

Cell Signal1

Cell Signal2

LAN (10/100M) 1, 2, 3, 4

WAN

CHR (Internal battery charging)

Button

Reset

Console

1 console port (also can be used as M2M port)

Serial port

RS232 or RS485 with DB9 and Terminal Block interface

IO Port (option)

2

Management

Easy to use and management;

Web/Telnet/SSH/CLI, support remote management

SMS;

SNMP;

RMS (Remote Management System)

At command

Supported

UIM/SIM Card Slot

Support 1.8V/3V UIM/SIM cards, one sim card slot

DC Jack

Two types of input jack for DC

2.5mm DC jack * 1

Terminal Block * 1

Power



Power supply

DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE;

DC5V~40V is the default, DC5V~50V is the option

Current

Idle: about 140mA@12VDC

Communication: about 300mA@12VDC

Software



Device Management

WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)

Minimum System Requirements

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;

Network Interface Card

Physical



Operating Temperature

Storage Temperature: -40 ~ 85°C

Working Temperature: -30 ~ 75°C

Humidity

95% Maximum (Non-condensing)

Dimensions

PCBA: 168mm x 111mm x 16mm

With case: 180mm x 114mm x 32mm

Weight

705g (not including the antenna)

Color

Metal Gray-Black, OEM is available

Others



Warranty

1 Year default. Option extends to 5 years maximum.

Package Contents

H700 Series Dual SIM Wireless 3G Router

Ethernet Cable

Power Adapter

Antenna

Others depends on option features







Applications

  • AMR (automatic meter reading)
  • Power station monitoring and control
  • Early Warning of Mountain Torrent
  • Fleet management
  • Power distribution network supervision
  • Remote POS (point of sale) terminals, ATM, Finance
  • Traffic signals monitor and control, Traffic info guidance
  • Oil field, weather forecast, environmental protection, street lamp monitoring and control
  • Remote Data Monitor and Control
  • CCTV, security surveillance
  • Water, gas and oil flow metering and schedule
  • Central heating system supervision
  • Weather station data transmission
  • Hydrologic data acquisition
  • Vending machine
  • Telemetry, SCADA
  • Vehicle logistics and diagnostics controlling
  • Parking meter and Taxi Monitor
  • Telecom equipment supervision (Mobile base station, microwave or optical relay station)



Typical Application Diagram for H700p 3G UMTS Router



Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port 0

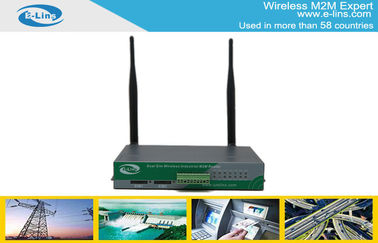

More Pictures for H700p Industrial Dual Sim 3G UMTS Router



Unlock Dual Sim RS232 / RS485 M2M 3G Mobile UMTS Router 1 WAN RJ45 port 1



Frequently Asked Questions

Q. Is the E-Lins H700 3G UMTS Router a suitable solution to provide 3G Internet access for my office?

A. Whilst it can certainly provide a reliable 3G mobile broadband connection with wired and Wireless LAN connections, the 700 3G Router will not have many of the office type functions such as allocating IP addresses based upon MAC address so we would recommend that you use a multi-functional 3G/4G Router like the H720 4G Router which combines many office type features including easy VPN configuration and load balancing with the M2M features such as ping reboot and SMS reboot to ensure a reliable 3G/4G mobile broadband internet connection with enhanced functionality and management.

Q. What antennas come with the E-Lins H700 3G UMTS Router?

A. The E-Lins H700 3G Router is supplied with both stick type and magnetic mount antennas for both the Cellular and WiFi connections - these 3G antennas are for indoor use only and the different types are included for your installation convenience. Many users will just use the stick type antennas except when installing the router in a cabinet or other enclosed unit where there may be signal interference in which case the magnetic mount antennas installed outside the enclosure may provide better signal reception.


Q. Can I use an external 3G antenna with my E-Lins H700 3G UMTS Router?

A. Yes - the E-Lins H700 3G umts router has screw type SMA antenna connectors so can be used with an external antenna. The higher gain on these outdoor antennas is not to improve the download speeds, the extra gain is required to compensate for the additional signal loss down the length of the antenna cable.
