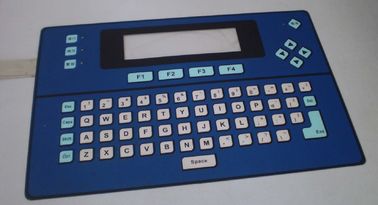

Thin Film PCB Membrane Keypad Switch Waterproof Key-embossing

Thin Film PCB Membrane Keypad Switch Waterproof Key-embossing
Thin Film PCB Membrane Keypad Switch Waterproof Key-embossing

Gambar besar :  Thin Film PCB Membrane Keypad Switch Waterproof Key-embossing

Detail produk:
Tempat asal: Cina
Nama merek: TKM MS
Sertifikasi: ISO9001:2008, SGS,Rohs
Model Number: TKM--MS--396
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 100pcs
Harga: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T , Western Union
Supply Ability: 100000Pieces per month
Detil Deskripsi produk
Material: PET Color: As per request
Adhesive: 3M or no adhesive LED: 3 LEDs
Cahaya Tinggi:

membrane keyboard switch

,

membrane keypad switch

Thin Film PCB Membrane Keypad Switch Waterproof Key-embossing






Quick Detail:





1.membrane switch with blue background

2. membrane switch witch computer keypad buttons

3. membrane switch circuit tail with silver printting

4.buttons with S/S metaldome and embossing


Type

PCB   MS

Application

Electronic Products

Color

Customed

Machine Stiffness

Rigid

Material

PET /PC

I nsulation Material

Organic resin

I nsulation layer thichness

General

Antiflaming Speciality

VO

Processing Technic

Electrolytic foil

Reinforcing material

Glass fiber



Description:

1. Copper foil substrate (Copper Film)
Copper foil: basically divided into two kinds of electrolytic copper and rolled copper common thickness 1oz 1/2oz and 1/3 oz
Substrate film: a common thickness of the 1mil with 1/2mil two kinds.
Glue (adhesive): thickness according to customer requirements.


2.In need of special light sources (eg: no shadows, no dizzying,brightness uniformity and neon effect ......),

in with the environment needs (eg: a narrow space, complex shapes, temperature and power consumption

constraints, vibration under the environment ......), the illusion is impossible to make up the traditional cold

light source.
In addition, for printed mark, instructions, election propaganda, body decoration and interior design, photo

or text on backlit transparent advertising material, EL cold light is the best light materials

3. Stiffener (PI Stiffener Film)
Stiffener: reinforcing the mechanical strength of the FPC, to facilitate the surface mounting job. Common thickness 3mil to 9mil.
Shape from the paper: to avoid foreign matter adhesive buildup Crimping before the.


4. EMI: electromagnetic shielding film, the protection circuit board line without interference from the outside world (a strong electromagnetic District or susceptible to interference zone).


Applications:
1. Disk drives
    Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the       0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.

2. Computer and LCD screen
    Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the         picture, through the LCD screen

3. CD player
    Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The     huge CD to carry around

4. The mobile phone
    Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of       products, easy connection of the battery, microphone, and buttons and into one.


5. The latest applications
    Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components       of xe packaging board, etc



Specifications

As per request OEM/OEM


Material:pi

1 mil

Cu:

1 oz

PI:

1 mil

Surface treatment:

pure-tin plating

Minimum hole dimension:

0.3mm

Minimum linear width:

0.08mm

Minimum linear distance:

0.08mm

External tolerance:

+/-0.05mm

Welding resistance:

280 more than 10 seconds

Peeling Strength:

1.2kg/cm2

Heat resistance:

-200 to +300 degrees C

Surface resistivity:

1.0 x 1011

Bandability:

meet IPC standard

Chemical resistance:

meet IPC standard




Competitive Advantage:


  • High reliable in function
  • Long life over 1 million operation times
  • Function test 100% before shipment
  • Long history in the industry
  • Experiences in cooperation famous brands such as SANYO, Philips etc.
  • Three factories to support mass production
  • Low cost
