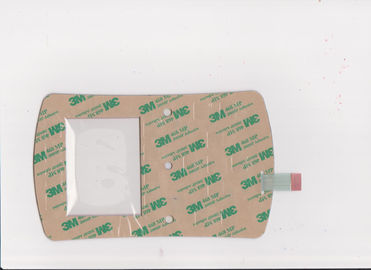

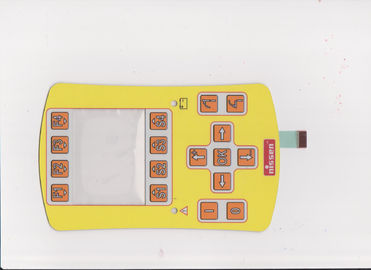

Backlight Membrane Switch with LGF Light autotype pet and 3M adhesive printing yellow white red color

Backlight Membrane Switch with LGF Light  autotype pet and 3M adhesive printing yellow white red color
Backlight Membrane Switch with LGF Light  autotype pet and 3M adhesive printing yellow white red color Backlight Membrane Switch with LGF Light  autotype pet and 3M adhesive printing yellow white red color

Gambar besar :  Backlight Membrane Switch with LGF Light autotype pet and 3M adhesive printing yellow white red color

Detail produk:
Place of Origin: DongGuan China
Nama merek: HHC
Sertifikasi: ISO9001:2008 ,SGS,RoHs etc.
Model Number: HC-BMS-415
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 100pcs
Harga: Negotiable
Packaging Details: Within 3 weeks based on MOQ
Delivery Time: T/T
Supply Ability: 100,000 Piece/Pieces per Month
Detil Deskripsi produk
Overlay material: F200 LED color: White
adhesive: 3M adhesive Window: transparent
Cahaya Tinggi:

Backlit Membrane Switch

,

graphic advertisement

LEDs Backlit Memrane switch

  1. each button have two LEDs around on the circuit
  2. even light for every button
  3. high quality with continue ordre from customer
  4. Energy save product, low power consuming.
  5. Withstand millions of cycles
  6. Low voltage

Description:


EL Circuit for  toys
1) Custom made
2) Any size and shape available
3) Energy save product, low power consuming.
4) Withstand millions of cycles





Applications:


Our membrane switches are widely used in :
•3C Electronics,
•Automobile industry
•Decoration light project
•Art work and gifts
•Commercial usage.
•Public facility



Specifications:
1 material : EL luminanscent
2 High life time :>1million times
3 Pass:ISO9001:2008RoHS.
4 High quality



Initial luminance

≥30-750 CD

Voltage range

AC50V—220V

Frequency

200HZ—1500HZ

Power rate

≤0.8MW/CM

Currency

≤0.15MA/CM

Life span

≥20000Hrs.





















The main technical parameters of membrane switch

wire lead resistance:

1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,030V DC

Operation Temperature:

-4070

Rated Voltage:

50V, DC

Operation Humidity:

at40,98%RH

Insulation resistance:

100MΩ,250V DC

Dome springback time:

5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree



























Competitive Advantages:


1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Top quality
3.Short lead time.

Backlight Membrane Switch with LGF Light  autotype pet and 3M adhesive printing yellow white red color 0
