Metal Case Induction Electric Motor Circuit Protector / Thermal Overload Protector

Name: Metal Case Induction Electric Motor Circuit Protector / Thermal Overload Protector
Brand: DESHENG
SKU: BR-A2D
Price: 1 USD
Availability: InStock
Rating: 4.5 (164 reviews)

Gambar besar : Metal Case Induction Electric Motor Circuit Protector / Thermal Overload Protector

Detail produk:

Place of Origin:	China
Nama merek:	DESHENG
Sertifikasi:	UL,VDE,CE CQC
Model Number:	BR-A2D

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1000pcs
Packaging Details:	5000pcs per package
Delivery Time:	3-10 days on order date
Payment Terms:	T/T L/C D/P
Supply Ability:	3,000,000pcs/month

Kontak

Detil Deskripsi produk

Features:	Compact, miniature	Product name:	Electric Motor Thermal Protection
Contact capacity:	125Vac/10A, 250Vac/6A, 24Vdc/10A	Applications:	Small motor / Transformer / Washer and dryer
Cycles life:	6,000 cycles	Certificates:	UL, VDE, CE CQC
Cahaya Tinggi:	motor thermal protection , thermal overload protector

Metal Case Induction Electric Motor Circuit Protector / Thermal Overload Protector

Applications:

Small motors
Coils
Transformers
Washers and dryers
Dishwashers
Automotive accessory motors
PC boards
Battery charges
………and more.

Description:

Changsheng BR-A2D series motor protector is built to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, and more. This compact motor protector is the best solution to protect the wide variety of motors under 1 Hp used in industrial and domestic appliances against locked rotor and overload situations.

This motor protector consists of a metal SPCCC housing that holds and protects the inner components against infiltration as well as mechanical deformation. In single–phase motors, the BR-A2D can be mounted directly in the main circuit to serve as an on– or in–winding protector.

Specifications:

Contact capacity	125Vac/10A, 250Vac/6A, 24Vdc/10A
The bimetal carries current or not	Not
Cycles life	6,000 cycles
Open temperature	50°C to 150°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	Epoxy resin
Contact resistance	≤50 m
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.
Lead wire pull strength	30 N applied from lead to lead for 5sec. No slip-off or rupture

Competitive Advantage:

1. The strongest Chinese manufacturer, ISO 9001and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc, normally on.

6. Epoxy resin

7. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

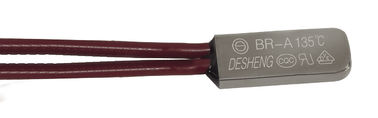

BR-A2D with standard metal case

Metal Case Induction Electric Motor Circuit Protector / Thermal Overload Protector 0

Metal Case Induction Electric Motor Circuit Protector / Thermal Overload Protector 1

BR-A2D with enforced metal case

Note: wall thickness of the enforced case is 0.5m minimum and it will withstand 30MPa injection pressure (no deformation)

①Metal case ②Plate ③Bimetallic disc ④Spring ⑤Movable contact ⑥Stationary piece ⑦Base ⑧Epoxy resin ⑨Lead wire ⑩Sleeve
